Fidias
Patternless lens edger
Fidias is the most reliable and time-effective grinding machine. Its excellent performance to accurately scan the inserted frame and lens provides the best processed lens for customers.

· Exceptional processing speed
· Innovative durability
· Reasonable & attractive price
  • Product Description
  • Specifications

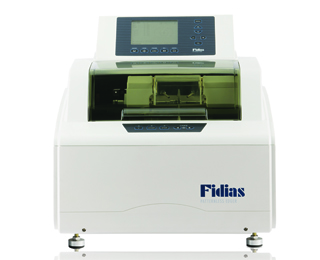

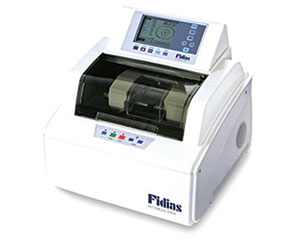

Fidias - Patternless lens edger
Fidias is the most reliable and time-effective grinding machine. Its excellent performance to accurately scan the inserted frame and lens provides the best processed lens for customers.
Exceptional processing speed
High grinding speed and ideally simplified functions enable users to save processing time, along with its superior product quality.
Innovative durability
Elaborate design and simple operation method guarantee its high durability for long term period.
Reasonable & attractive price
The reasonable & attractive pricing policy of Fidias make users easily have access to it.
Supporting products
BK-900/Blocker
FR-900/Frame Reader
6.4 inch LCD Display
Scan Data Display
Exceptional processing speed



Innovative durability



Reasonable & attractive price



Accurate and Quick tracing
It delicately scans data by 0.01mm accuracy degree and transmits the data very rapidly.
Easy to use
Easy and convenient operation are possible by checking the data designed on LCD screen.
Reduced operation time
Operating and processing time can be remarkably shortened by its speedy work process.
Any lens applicable
All kinds of lenses can be applicable for its processing. (Plastic, glass, medium & high index, polycarbonate)
Brilliant polishing
Highly clear and gloss surface is available.
Processing state
Bevel processing(About 100-190 second)
Flat processing(About 190-270 second)
Polishing processing
Fidias - Patternless lens edger
Fidias is the most reliable and time-effective grinding machine. Its excellent performance to accurately scan the inserted frame and lens provides the best processed lens for customers.
Exceptional processing speed
High grinding speed and ideally simplified functions enable users to save processing time, along with its superior product quality.
Innovative durability
Elaborate design and simple operation method guarantee its high durability for long term period.
Reasonable & attractive price
The reasonable & attractive pricing policy of Fidias make users easily have access to it.
Supporting products

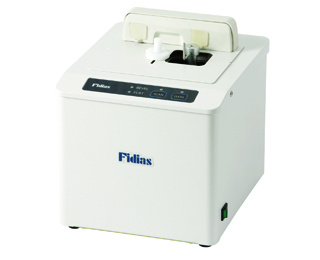

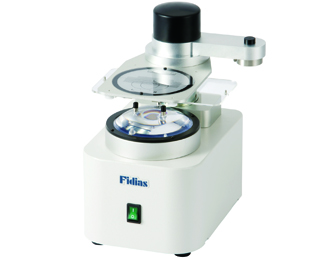

BK-900/Blocker
FR-900/Frame Reader
6.4 inch LCD Display
Scan Data Display
Exceptional processing speed



Innovative durability



Reasonable & attractive price



Accurate and Quick tracing
It delicately scans data by 0.01mm accuracy degree and transmits the data very rapidly.
Easy to use
Easy and convenient operation are possible by checking the data designed on LCD screen.
Reduced operation time
Operating and processing time can be remarkably shortened by its speedy work process.
Any lens applicable
All kinds of lenses can be applicable for its processing. (Plastic, glass, medium & high index, polycarbonate)
Brilliant polishing
Highly clear and gloss surface is available.
Processing state
Bevel processing(About 100-190 second)
Flat processing(About 190-270 second)
Polishing processing
  Edger
Edging Automatic
Function   Beveling
Flat Edging
Polishing
Applicable Lens Plastic, Glass, High Refractive, Polycarbonate
Available Lens Size  Maximum 90mm
Minimum 22mm
Power Supply AC100-120V, AC200-240V
Size/Weight 532(W) X 515(D) X 506(H) / 45kg
  Frame Reader
Measurement Method Two dimensional measurement
Power Supply AC 110/220V, 50/60Hz
Power Consumption 42W(Maximum/)
Size/Weight 206(W) X 242(D) X 194(H) / 6.8kg
 Blocker
Power Supply AC 100-240/200-240V, 50/60Hz
Power Consumption 15W(Maximum/)
Size Weight 220(W) X 209(D) X 194(H) / 3.8kg
