PLM-8000

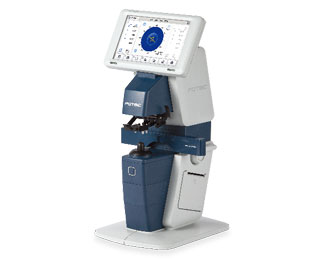

Auto Lensmeter
PLM-8000 suggests the possibility of selection to customers.

· Shack-Hartmann Wavefront Sensor
· UV/Blue Light Transmittance Measurement
· Automatic Lens Detection mode
· Wi-Fi-based wireless network
  • Product Description
  • Specifications

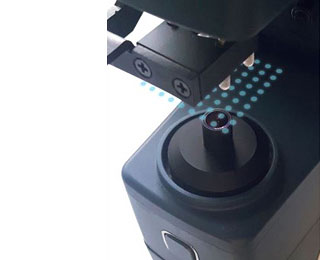

Shack-Hartmann Wavefront Sensor (SHWFS) technology adopted.
The SHWFS-based technology and the algorithm compensating for Light loss are adopted to minmize the measurement error and produce more accurate value
UV/Blue Light Transmittance Measurement
Since the ultraviolet(UV) transmittance of ordinart lenses or sunglasses is measured and the measured value is displayed with the UI, you can check the data more intuitvely.
It is possoble to measure the transmittance of lens that blocks blue light emitted from digital devices such as smartphones and LCDs.(There are two types of dispaly modes available.)
Green Measurement Light Source
We have minimized measurement errors by green measurement light sources of wavelength close to the international standard, e-line
Automatic Lens Detection Mode
At the time of measurement, the system provides the automatic detection mode, which determines the lens type, automatically switches to the corresponding mode, adn enables ad instant measurement, In a normal lens mode, it is possible to measure double lens adn triple lens.

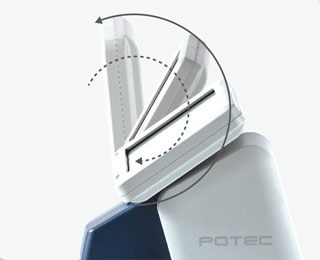

LCD Tilting Function
A wide tilting angle of LCD prvides you bright adn clear screen view regarless of your sitting or standing position.
7-Inch LCD Touch Screen
The system uses a familiar touch panel and widescreen dispaly to enhance user- friendliness and provides an easy-to-use graphical user interface to display the translucent shape and the angle of the placed lens in real timem, Thus, you can easily measure the lens.

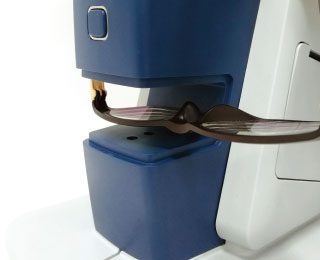

Measuring the pupil distance(PD) adn the pupile height of spectacle frames
Adjusting the lens center area with the direction indicator icon allows you to measure the distance between the left and right lens centers and the pupil height of the spectacle trames.
Multilingual Support
The system suppores six languages: English, French, Poruguese, Chinese, Japanese and Arabic.
Auto Cutting Printer
The system uses a low-noise high-speed auto cutting printer to enable you to output and check the measurement data on the port and to present the data to customers quickly
Various available interfaces(RS-232, Wi-Fi)
It is possible to support the integrated system management systemtically with the Wi-Fi-based wireless network communication module, which is installed to exchange data with the Auto Digital Reflector (PDR-7000) and the Auto Ref-Keratometer (PRK-8000) regardless of working conditions.
Using RS-232 also allows you to interface with existing systems.
Shack-Hartmann Wavefront Sensor (SHWFS) technology adopted.
The SHWFS-based technology and the algorithm compensating for Light loss are adopted to minmize the measurement error and produce more accurate value
UV/Blue Light Transmittance Measurement
Since the ultraviolet(UV) transmittance of ordinart lenses or sunglasses is measured and the measured value is displayed with the UI, you can check the data more intuitvely.
It is possoble to measure the transmittance of lens that blocks blue light emitted from digital devices such as smartphones and LCDs.(There are two types of dispaly modes available.)
Green Measurement Light Source
We have minimized measurement errors by green measurement light sources of wavelength close to the international standard, e-line
Automatic Lens Detection Mode
At the time of measurement, the system provides the automatic detection mode, which determines the lens type, automatically switches to the corresponding mode, adn enables ad instant measurement, In a normal lens mode, it is possible to measure double lens adn triple lens.
LCD Tilting Function
A wide tilting angle of LCD prvides you bright adn clear screen view regarless of your sitting or standing position.
7-Inch LCD Touch Screen
The system uses a familiar touch panel and widescreen dispaly to enhance user- friendliness and provides an easy-to-use graphical user interface to display the translucent shape and the angle of the placed lens in real timem, Thus, you can easily measure the lens.
Measuring the pupil distance(PD) adn the pupile height of spectacle frames
Adjusting the lens center area with the direction indicator icon allows you to measure the distance between the left and right lens centers and the pupil height of the spectacle trames.
Multilingual Support
The system suppores six languages: English, French, Poruguese, Chinese, Japanese and Arabic.
Auto Cutting Printer
The system uses a low-noise high-speed auto cutting printer to enable you to output and check the measurement data on the port and to present the data to customers quickly
Various available interfaces(RS-232, Wi-Fi)
It is possible to support the integrated system management systemtically with the Wi-Fi-based wireless network communication module, which is installed to exchange data with the Auto Digital Reflector (PDR-7000) and the Auto Ref-Keratometer (PRK-8000) regardless of working conditions.
Using RS-232 also allows you to interface with existing systems.
Measurement
Sphere Power(SPH) -25 ~ ±25D(0.01/0.06/0.12/0.25D Steps)
Cylinder Power(CYL) 0 ~ ±10D(0.01/0.06/0.12/0.25D Steps)
Axis(AX) 0 ~ 180° (1° Steps)
ADD 0 ~ 10D(0.01/0.06/0.12/0.25D Steps)
Prism 0 ~ 20△(0.01/0.06/0.12/0.25△ Steps)
Cylinder Mode -, +, ±
Prism Mode Rectangular / Polar
LED wave 525nm(Green)
Wave e-Line, d-Line
UV, BLUE Mode 0~100%
Interface RS-232C / WiFi(Option)
Interpupillary Distance(PD) model: PLM-8000PD 0~90mm (0.5mm Steps)
Marking System Pen type
Display 7inch TFT-LCD(800x480pixel) Touch Panel
Internal Printer Themal line printer with Auto-Cutter function
Power Supply AC100-240V~,50/60Hz
Power Consumption 15~53VA
Size Approx.198(W)x245(D)x420(H)mm
Weight Approx.5Kg
